Overview

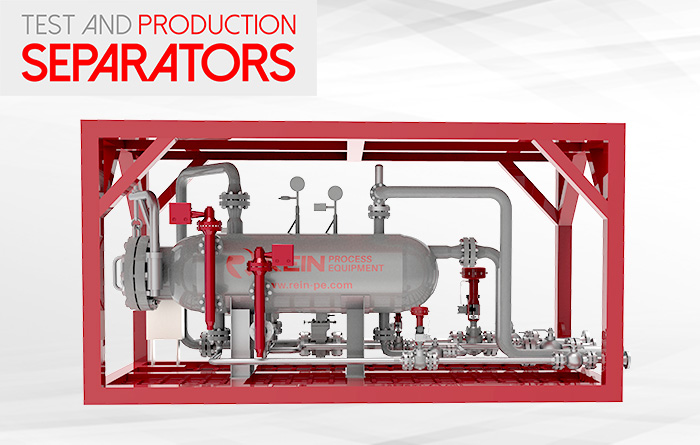

Three Phase Horizontal Test Separator with Gas Metering and Recording System. Current separator skid is equipped with Level Transmitters, Pneumatic Control Valves with Positioners, Signal Processing Unit, Daniel Fittings, Barton Chart Recorder, Fisher Pressure Control Valve, WIKA gauges. Separator vessels is fabricated as per ASME standard, U-stamped, includes high-efficient internals.
Three Phase Horizontal Test Separator with Gas Metering and Recording System. Current separator skid is equipped with Level Transmitters, Pneumatic Control Valves with Positioners, Signal Processing Unit, Daniel Fittings, Barton Chart Recorder, Fisher Pressure Control Valve, WIKA gauges. Separator vessels is fabricated as per ASME standard, U-stamped, includes high-efficient internals.
Current separator is used in onshore facility in South-East Asia.
Delivery period is between 3 and 6 months based on the client’s requirements and availably of parts in warehouse.
Price fluctuates between 100,000.00 and 150,000.00 USD based on the client’s requirements.
Specification
Flow rate: 3000 - 6000 BOPD (450-900 m3/d)
Operating Pressure: 750-1440 psig (5-10 MPa)
Vessel dimensions: 30 in. x 10 ft.
Gas Line: 3-6 in. (DN75-150)
Water Line: 1-2 in. (DN25-50)
Oil Line: 1-3 in. (DN25-75)
Standards: ISO, NACE, ASME, DNV, CE/PED, ATEX
