Why Debris Catcher is used during flowback and well test operations?

After hydraulic fracturing, debris/trash will come from the well, which needs to be removed. Flowback equipment deploy several sets of flowback equipment, such as debris catchers, sand traps, sand separators, choke manifolds, high-stage, and low-stage separators, as well as other auxiliary equipment. So, debris catchers are highly effective in bulk removal of debris coming from the well. Debris catchers come in different configurations and skid structures. Rein Wellhead Equipment is API-certified company in China, which designs and fabricates various types of debris catchers and other solid-control equipment in China.

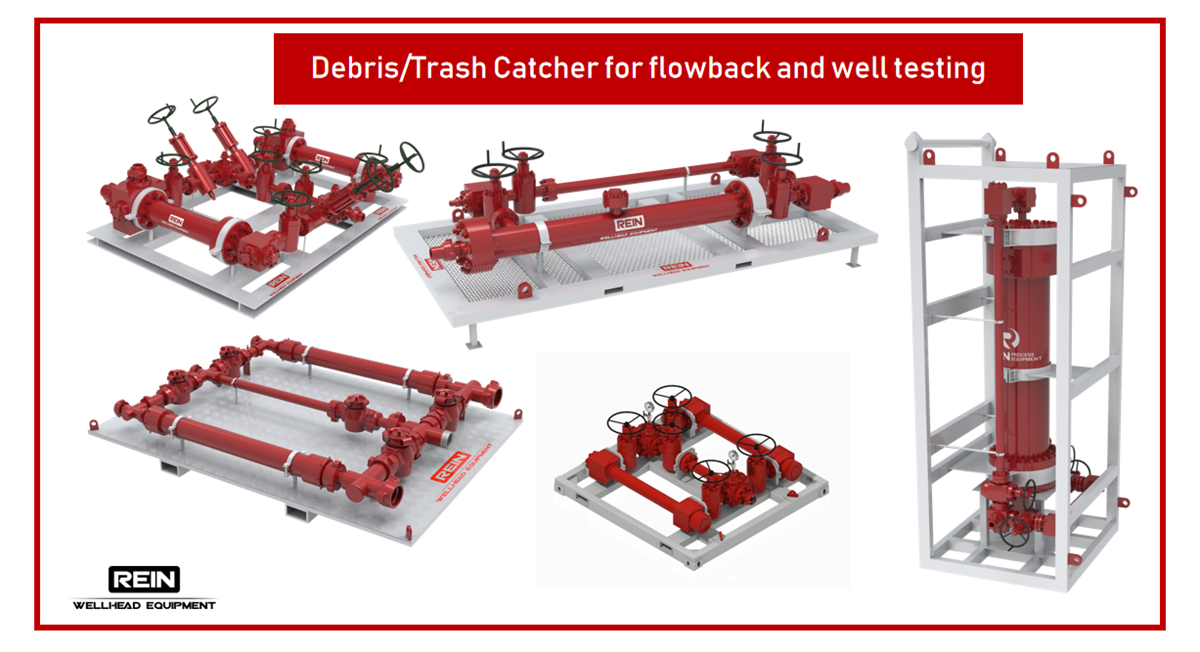

Debris/Trash Catcher is used during well clean-up, flowback and surface well test operations.

Debris Catcher Plug Valve Manifold is a special type of oilfield manifolds designed to catch debris/trash from well stream during flowback operations. Debris Catcher Manifold consists of several plug valves or slab gate valves, catcher-cylinder, high-pressure fittings, and pressure gauge.

Pressure rating of Debris Catcher Plug Valve Manifold

Sizing of Debris Catcher Plug Valve Manifold

Catcher Barrel Sizing

Code & Standards

Single Barrel Debris Catcher is another type of debris/trash catcher supplied by Rein Wellhead Equipment. Debris Cather consists of barrel with separation element, slab gate valves or plug valves, subbed tees/crosses, hammer unions, flanges, fasteners, supports and skid with lifting lungs. Debris Catcher is widely used in flowback, well clean-up and well testing applications.

Rein Wellhead Equipment designs, and supplies Debris Catcher, which is designed to handle high-pressure, and to work under harsh working environment. Rein Wellhead Equipment is a supplier and manufacturer of Debris Catcher in China.

Pressure rating of Single Barrel Debris Catcher

Sizing of Single Barrel Debris Catcher

Catcher Barrel Sizing

Code & Standards

Double Barrel Debris Catcher with hydraulic and manual gate valves allow the oilfield service to conduct flowback and well clean-up works continuous without work interruption due to the maintenance of debris catcher. Barrels of debris catcher ensures separation of trash coming from formation after the hydraulic fracturing, hydraulic slab gate valves ensure remote flow control, while manual gate valves provide additional means of flow control in case of unavailability of hydraulic power.

Note: Classes from DD shall be NACE MR0175/ISO 15156 compliant

Rein Wellhead Equipment designs and supplies Debris Catchers, which are designed to handle high-pressure, and to work under harsh working environment. Rein Wellhead Equipment is a supplier and manufacturer of Debris Catchers, Catcher Manifolds and other flowback equipment from China. Visit Rein’s website for more information: www.reinwellheadequipment.com
